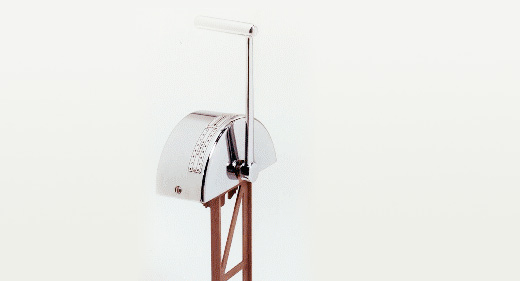

Model 2093 remote control for model 2091 is of the same rugged design. Entirely made up of die cast silicon bronze and stainless steel hardware and is backedwith our usual warranty. This head comes with all the hardware to mount the interconnecting cables. These must be 47 series pull/pull cables.

The cable is attached with the clamps on the bottom of the supports of the control heads and the chain can be placed over the sprocket. When the control head is in the neutral position (handle in midposition), the loose ends of the chain should be equally long on either side of the sprocket. The cable core is equipped with two nuts on either end. One of the nuts must be removed then the cable-end can be passed through the adaptor link. The nut can now be re-installed.
