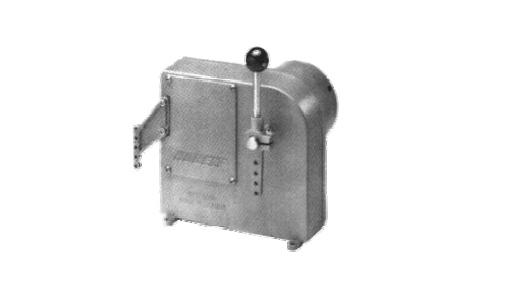

The Actuator is made in bronze and stainless steel. It has a worm wheel drive onto a spur gear drive giving a reduction gear of 200 to

1. The outputshaft has a total of 900 of rotation and a maximum torque of 150 inc.lbs.

What really separates the Kobelt Actuator from other actuators is electric clutch which disengages upon power failure, allowing the unit to be manually controlled or mechanically remote controlled.

A spring mechanism is available that will return the clutch to neutral and the throttle to idle automatically upon power failure. The Throttle Actuator can be reversed in the field for either left-hand or right-hand rotation. The Clutch Actuator can also be by simply reversing wires that are easily accessible. The main controller can be adjusted to limit the handle travel in either direction to suit either the Model 6531 gearbox or throttle movements.

Features

This Actuator can be used for controlling

• reverse gear
• control valves
• engine throttles
• CP propellers
• trolling valves

And innumerable other applications, both in the marine industry and industry in general.

Weight: 20 LBS. (9 KG)
