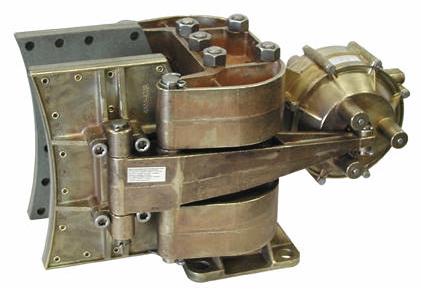

The 5025 Brake Caliper is designed for high energy input applications with medium torque requirements. It is designed to fit the 4 x 7 disc series which is 4" thick and has a 7" wide rubbing face.

This disc offers excellent thermal capabilities and is ideally suited for marine and industrial applications that require high energy input for extended periods such as tensioning brakes for winches, small draw works, anchor handling equipment, etc. Because of its large brake lining area, the caliper offers many hours of operation before lining replacement is needed.

The diaphragm actuator is extremely responsive to varying fluid pressure and precise control can be exercised over the braking application. Maximum supply pressure to the actuator should not exceed 100 psi (6.9 bar).

The actuator clevises can be adjusted to compensate for lining wear. The clearance between disc and brake shoe can therefore be maintained at an absolute minimum. In cycling applications the shorter stroke of the actuator can vastly increase compressed air efficiency.
